ავტომატური სტაბილოს ჩანთა ზედა ეტიკეტის შესაფუთი მანქანით

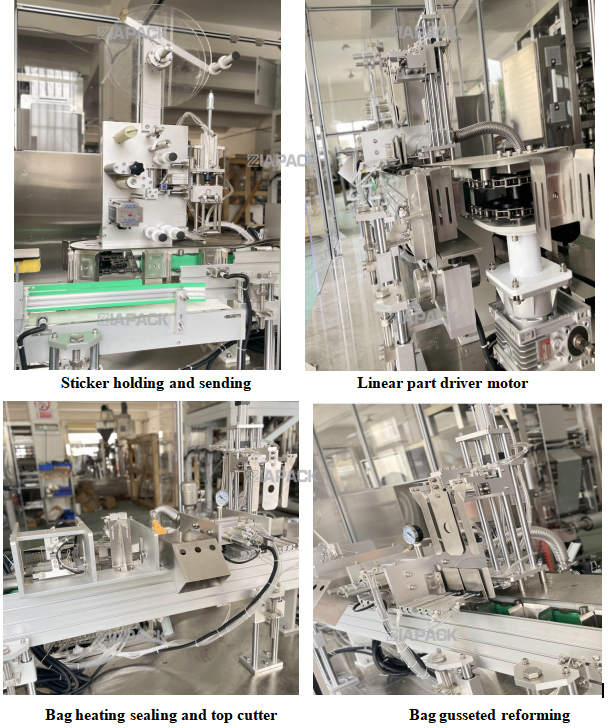

This machine is special design for make the gusset bag with flat bottom .After the full bag with product drop on this machine .This
machine will carry the bag ,go through one time bag mouth folding and then stick the label.The machine frame made by SUS304 .PLC and touch screen adopt by Siemens brand .And Pneumatic parts adopt SMC brand .Main Electrical components adopt Omron and Schneider brand.
machine will carry the bag ,go through one time bag mouth folding and then stick the label.The machine frame made by SUS304 .PLC and touch screen adopt by Siemens brand .And Pneumatic parts adopt SMC brand .Main Electrical components adopt Omron and Schneider brand.
Working station
Bag forming -------------------------------------
Product filling ----------------------------------
Bag receive from VFFS packing machine ----
Bag folding and top pressing ------------------
Bag pre-sealing ---------------------------------
Bag folding and labeling -------------------
Output from Vacuum chamber ----------------
Bag top trimming -------------------------------
Vacuum Bag output-----------------------------
PRODUCT SPECIFICATIONS
არა | საქონელი | Data | ||
1 | შეფუთვა წონა | 100-500gram | 500-1000gram | 1-2 კგ |
2 | შეფუთვა სიჩქარე | 12-30bag/min | 8-20bag/min | 5-12bag/min |
3 | Ენერგომოხმარება | 15 კვტ | 20kw | |
4 | ფილმის სიგანე | 420 მმ | 520 მმ | 720 მმ |
5 | ჰაერის მოხმარება | 0.65cbm/min 8Bar | 0.85cbm/min 8Bar | 1cbm/min 8Bar |
6 | მანქანა წონა | 2.5ton | 5.5ton | |
7 | Delivery dimention | 40 HQ | ||
8 | Install space | 5.8*2.5*3meter | 6.8*2.5*3meter |
