შესავალი:
This machine are special design for packing powder product into pillow bottom bag .It is widely use for packing wheat flour and chemical powder .This machine unit are including one set ZL2000 auger filling machine one set ZL520 vertical bag forming filling machine .one set Open mouth bag conveying machine and control system .The whole machine control by PLC and operate by color touch screen .
Bag carrying conveyor
სამუშაო პროგრესი:
1,Automatic weighing and discharge the material
2,Automatic making the bag and filling the material
3,Automatic discharge the bag on conveying machine with module
4,Sending the bag to manual vacuuming and sealing
Details information of the machine

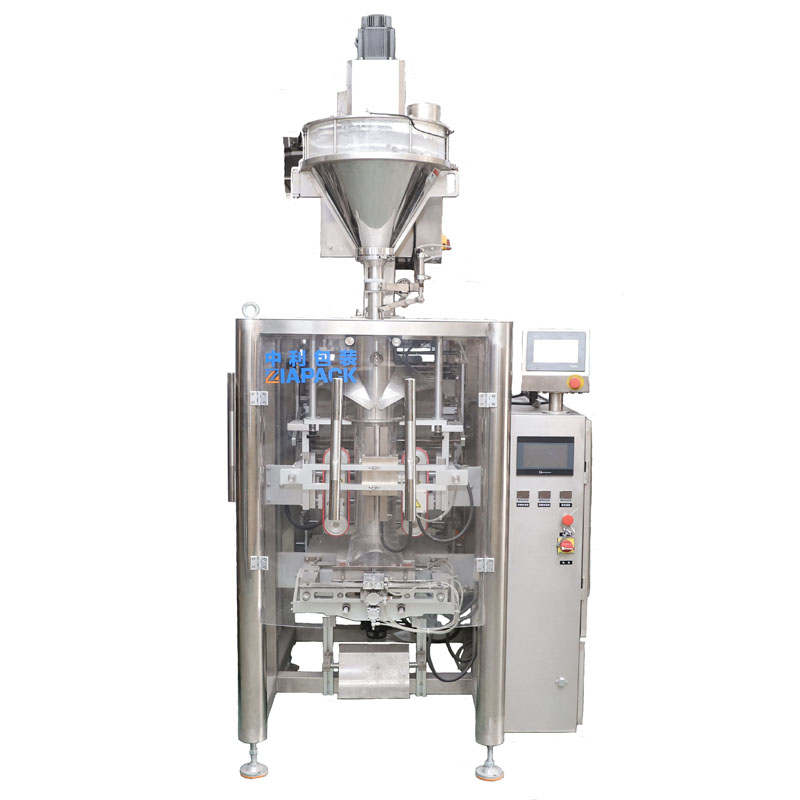

1,ZL520 Vertical bag forming filling sealing machine
The unit of machine is especially developed for small bag packaging ,This machine can independently complete the bag making, filling (air filling or exhausting as option), sealing (hole punching as option ) code printing, and bag counting etc. adopt film automatic correction device .The machine frame and material contact part made by SUS304 .PLC and touch screen adopt by Siemens brand .Adopt Panasonic servo motor for horizontal sealing which is fast and stable .And Pneumatic parts adopt Air Tac brand .Main Electrical components adopt Omron and Schneider brand Which is easy to operation
Ტექნიკური პარამეტრები
Weighing Range: 500-1000gram
შეფუთვის სიჩქარე: 20-50 ჩანთა/წთ
ჩანთის ზომა: (80-350)*(60-260)მმ(ლ*მ)
შეკუმშული ჰაერის მოთხოვნა: 0.6Mpa 0.65m³/წთ
ბორბლის გარე დიამეტრი: 400 მმ
ბირთვის შიდა დიამეტრი: 75 მმ
მანქანის წონა: 800 კგ
კვების წყარო: 5.5 კვტ 380 ვ±10% 50 ჰც
ძირითადი მახასიათებლები და მახასიათებლები:
ჩანთების ფართო ასორტიმენტი: ბალიშის და გუსეტის ჩანთები (ვარიანტი).
მაღალი სიჩქარე: 20-60 ჩანთა/წთ-ზე მეტი
მარტივი მუშაობა: PLC კონტროლერი და ფერადი სენსორული ეკრანი, ხარვეზის ჩვენება სენსორულ ეკრანზე.
ადვილად შეცვალოს: მხოლოდ 10 წუთი შეცვალოს სხვადასხვა ტომრები.
სიხშირის კონტროლი: სიჩქარე შეიძლება იყოს მორგებული სიხშირე კონვერტაციის ფარგლებში.
მაღალი ავტომატიზაცია: უპილოტო აწონვისა და შეფუთვის პროცესში, მანქანის სიგნალიზაცია ავტომატურად მარცხის დროს.
უსაფრთხოება და ჰიგიენა: ფირის გარეშე, მანქანა განგაშის.
მანქანა სიგნალიზაცია და შეჩერება, როდესაც არაადეკვატური ჰაერის წნევა.
უსაფრთხოების დამცავი მექანიზმები, უსაფრთხოების სიგნალები, მანქანა სიგნალი და შეჩერება, როდესაც დაცვის თანამშრომლები იხსნება.
ჰიგიენური კონსტრუქცია, პროდუქტის საკონტაქტო ნაწილები მიღებულია sus304 უჟანგავი ფოლადი
